| SPECIFICATIONS | ||
|---|---|---|
| No. of CNC Controlled Axis | —- | 1 / 2 / 3 |
| Grinding Range (Dia.) | mm | 2-125 |
| Max. Infeed Grinding Length | mm | 95 / 145 / 195 |
| CNC SYSTEM | — | SIEMENS / FANUC |
| Min. Incremental Feed (X axis) | mm | 0.001 thru AC Servo motor |
| Grinding Wheel Diameter | mm | 350 / 400 / 500 |
| Grinding Wheel Width | mm | 100 / 150 / 200 |
| Reg. Wheel Speed (stepless display) | rpm | 20-200 (with digital RPM) |
| Gr. Wheel Motor Power | hp | 7.5 / 10 / 15 / 25 |

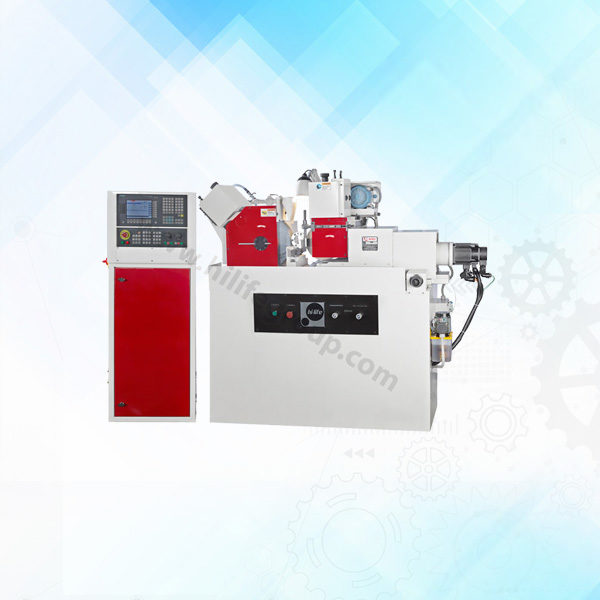

CNC Centreless Machine
We provide superior performance grinding machines manufactured by Hi-Life Machine Tools Ltd.
SPECIAL FEATURES:
- TURCITE B coated Infeed slideways with automatic lubrication.
- Precision ballscrew directly coupled to AC Servo motor moves each CNC axis.
- Anti Friction / Hydrodynamic bearings for grinding wheel spindle.
- Automatic oil filtration & circulation unit for Grinding wheel head.
- Menu driven Grinding cycles with automatic dressing.
