Because of the wide assortment of resistances, tooth width, and custom components, Steelmans can’t stock standard spline broaches. Oversize pilot openings are required for all spline frame turning introducing applications. The pilot gap will leave a little sweep at within corners. This span is frequently satisfactory in light of the fact that contact is as yet made at the outside of the frame.
Because of assembling impediments, there is a little range on the suggest at within corner of spline teeth. In any case, this sweep can’t be found in the completed item in light of the fact that the curiously large pilot opening breadth evacuates part material here. The curiously large pilot opening is basic to making isolated chips while suggesting and lessening the weight required to cut the frame.

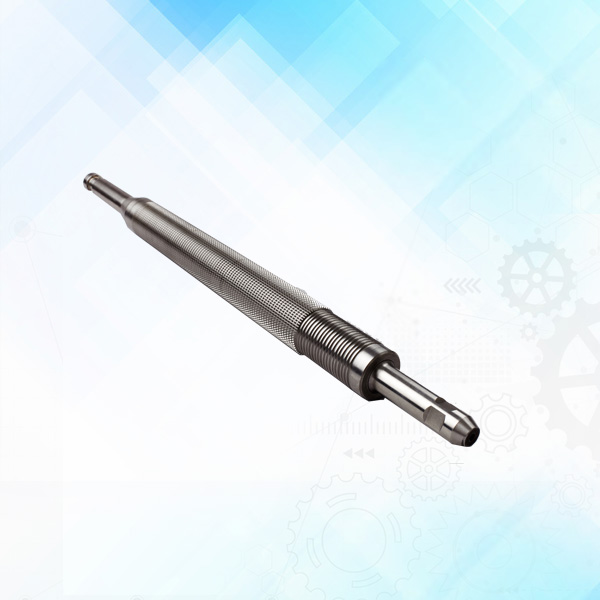

A complete range of Spline-Involute, Parallel and Trapezoidal, Serrations, Ratchet, broaches specially designed to suit the component specifications. Available in push or pull type desigh. We regularly manufacturer spline broaches for precision-made Steering Knuckle Arm, Constant Mesh Gear, Front Axle, Lift Arm, Depth Control Cap, Bull Gear, Differential Lock Clutch centre and Fly/Sprocket Wheel Ratchet components.
Complete range of Spline Broaches:
- Involute Spline
- Straight Spline
- Calibration Spline Broach
- Serrations
- Serration Drifts
- Parallel and Trapezoidal
- Ratchet
